Architecturally designed Commercial Concertina Doors provide a security deterrent

GENERAL

ATDC’s range of heavy duty commercial grade concertina doors https://www.trellisdoors.com.au/products/commercial-security/security-screens-and-screen-doors  have a contemporary aesthetic  appeal with their sleek lines and streamlined engineering design. They occupy only a minimal storage depth when unlocked and folded back into their stacking space at the side of the opening.

Attached are photographs of a recent installation for Dan Murphys, a well renowned national liquor retailer which is part of the Endeavour Group which also owns the BWS( Beer Wines and Spirits) liquor retail chain. The installation was at an outlet in the NSW Blue Mountains west of Sydney.

PROJECT DESIGN SPECIFICATIONS

These steel constructed concertina doors have a distinctive minimalist design and they retract sideways out of the way in a scissor like action into a compact storage area so as to be almost invisible during trading hours. The diagonal metal cross linkages are configured to permit optimum ventilation and through vision through the mesh infill of the doors. Further unique advantages are the absence of any need for any overhead headroom and there is a removable floor track to eliminate any trip hazards during trading. Security of these doors can be  enhanced by installation of a triple point contact locking mechanism at either end of the system or in the centre of the door.

COLOUR RANGE

The doors installed on this project were supplied in a standard satin black Powder coated finish.Pearl white is another standard finish although any other colour in the Dulux Duralloy powdercoat range is avaialble on request.

WARRANTY

12-month warranty against defective materials and workmanship applies

CONTACT US

For further information on our complete commercial range of concertina doors  visit our website at https://www.trellisdoors.com.au/products/commercial-security  – please contact ATDC toll free from anywhere in Australia on 1800 657 435 or email trellis@trellisdoors.com

NSW Master Security License: 410452552
QBCC QLD License number :15029633

Versatile and trackless expandable gates for commercial, industrial and retail applications

General

ATDC has installed  its expandable gates  ( https://www.trellisdoors.com.au/product/commercial-security/barriers-and-cafe-barriers/fencing-s04-1 ) to secure the shopfront for Café Hilton at Sir Donald Bradman Drive at Hilton near Adelaide in South Australia

Expandable barrier Project Design Specifications

There was no easy method of securing this tenancy since there was no adequate structure to support the installation of traditional top hung door systems. A servery counter installed in the path of the lease line at one end of the storefront provided additional challenges. ATDC were able to overcome these apparent difficulties through the installation of trackless expandable gates which did not require any structural supports and so provided the level of security required by the customer. Wall mounted locking was a method to secure the systems together with intermediate drop bolts installed along the span of the gates.

These cost-effective expandable gates are ideal to restrict access in shopping centres, kiosks, pop-up shops, food courts, arcades, shop fronts, temporary tenancies, sports stadiums, showrooms, warehouse loading bays and public buildings including airports, railway stations, bus interchanges, construction sites, OH&S work safe areas.

The barriers were powdercoated in a standard black satin finish.

Warranty

A 12-month warranty against defective materials and workmanship applies.

Project Work

Project specific photographs are attached above for viewing.

Contact Us

For further information on our full range of expandable gates  visit ATDC’s website at  https://www.trellisdoors.com.au/products/commercial-security/barriers-and-cafe-barriers .Please contact ATDC toll free from anywhere in Australia on 1800 657 435 or by email trellis@trellisdoors.com

NSW Master Security License: 410452552
QBCC QLD License number :15029633



Folding security gates provide security and access control

ATDC’s folding security gates https://www.trellisdoors.com.au/product/commercial-security/security-screens-and-screen-doors/s06-concertina-security-shutters provide a good deterrent against break and enter and also are an effective access control device and crowd control mechanism.

In the above images above we showcase an installation at the Melbourne Cricket Ground with project managers being Victoria based leading fitout company, One68

These lockable and powdercoated gates have a rigid steel mesh infill with an optional full metal frame for extra strength and they can be manufactured to an unlimited span and a maximum height of 4500mm.

A high strength triple contact wall mounted locking option is available as well as an option of a seamless but lower grade up/down locking arrangement where security is of a lower priority.

These low headroom gates fold sideways in a scissor-like fashion suspended from a heavy duty secure extruded aluminium top track. fold back to a tight and compact storage area when unlocked and opened so as to be almost invisible.

Maximum see through visibility and ventilation is also offered by these systems.

For further information visit ATDC’s website at https://www.trellisdoors.com.au/products/commercial-security/security-screens-and-screen-doors to view their complete range.ATDC can be contacted on 1800657435 or via email at trellis@trellisdoors.com .Available Australia wide now.

NSW Master Security License: 410452552
QBCC QLD License number :15029633



Industry Leading Quality Grade Folding Closures and Doors

ATDC has retrofitted its market  leading folding closures and  doors ( https://www.trellisdoors.com.au/product/commercial-security/folding-doors-and-shop-doors/fc1-folding-closures ) to secure the  existing storefront opening for the Connor tenancy at Westfield Coomera near Brisbane.

Connor is a high-profile menswear brand for leading national clothing retailer Retail Apparel Group and ATDC is a specified and recommended supplier.

PRODUCT DESIGN SPECIFICATIONS.

This widespan 10000mm wide x 4000mm high folding door was manufactured from locally sourced quality grade clear anodised extruded aluminium sections. The polycarbonate material curtain infill consisted of 300mm wide stacking panels and provides maximum see through visibility

A number of keyed alike up/down locking mechanisms placed along the span of the door provides   seamless lockup without any requirement for removeable mullions.

All works were carried out after hours by ATDC’s experienced, licensed installation crew.

FOLDING DOOR WARRANTY

A 12-month warranty against defective materials and workmanship applies

CONTACT US

For further information on ATDC’s comprehensive range of folding closures and doors see our website at https://www.trellisdoors.com.au/products/commercial-security/folding-doors-and-shop-doors or contact us toll free from anywhere in Australia on 1800 657 435 or email us at trellis@trellisdoors.com

NSW Master Security License: 410452552
QBCC QLD License number :15029633

Expandable Gate Complies with Australian Standards for Temporary Fencing



ATDC’s expandable gate https://www.trellisdoors.com.au/product/commercial-security/safety-barriers-s04-1dd stands as the only one on the Australian market that complies ( in certain circumstances) with the relevant Australian Standards AS 4687-2007 for Temporary Fencing & Hoardings.

Independently NATA tested, it complies with the Simulated Climbing Test, Foothold Aperture Test and Dynamic Impact Tests of the Australian Standards in certain circumstances, and it is Australia’s only OH+S compliant safety tested barrier, thereby making it safe for both employees and the general public. ATDC provides its customers with a full set of safe operational instructions in the deployment of these mobile, trackless, portable gates.

These are all important factors that should be considered when contemplating an expandable gate purchase rather than simply chasing a bargain basement price point. And ATDC’s gate is also cost effective.

The systems are available at standard heights of 2 metres and 2.5 metres however can be customized to the height of each particular application. Standard powdercoat finishes are either a black satin or pearl white although any powdercoat finish in the Dulux Duralloy range can be achieved.

Running on a series of heavy duty industrial grade bottom castors which are securely attached to rigid steel inverted T-bases,these gates have multiple locking options including emergency egress for compliance with the BCA in certain circumstances.

Great access control equipment  and  loss minimization device they are available as an outright purchase or short to medium term rental/ hire nationally across Australia.

For further information on their full range of expandable gates visit ATDC’s website at https://www.trellisdoors.com.au/products/commercial-security/barriers-and-cafe-barriers or contact them at trellis@trellisdoors.com

NSW Master Security License: 410452552
QBCC QLD License number :15029633

Rolling shutters are ideal to secure low height counter tops, serveries, benchtops, reception counters

GENERAL

ATDC has installed its Rolling Shutters https://www.trellisdoors.com.au/product/commercial-security/roller-shutters/roller-doors-rs7 to secure the kitchen counter to Mainview Kindergarten at Truganina in Victoria, near Melbourne.

ROLLER SHUTTER DESIGN SPECIFICATIONS

This aluminium extruded, manual operated, spring counterbalanced shutter was installed with a slimline aluminium overhead pelmet box to conceal the overhead roll and resulted in  a very neat installation.

The compact pelmet box dimensions did not impede the restricted height of the already limited countertop daylight opening height.

The shutter was fitted with a key lockable bottom rail for security and greater access control. The  curtain infill for this powdercoated product consisted of a transparent clear polycarbonate material.

WARRANTY

A 12-month warranty against defective materials and workmanship applies.

PROJECT WORK

Project manager for this installation were North Melbourne based Harris HMC Interiors. Photographs of the installation are attached above for viewing.

CONTACT US

See our full range of roller grilles and roller shutters or contact us toll free from anywhere in Australia on 1800 657 435 or email trellis@trellisdoors.com

NSW Master Security License: 410452552
QBCC QLD License number :15029633

Dual Purpose Expandable Security Gates for Commercial,Retail and Industrial applications

The  Australian Trellis Door Co (ATDC) is Australia’s premier supplier of premium  grade expandable security gates https://www.trellisdoors.com.au/products/commercial-security/barriers-and-cafe-barriers for securing  industrial, commercial ,hospitality and retail properties.

The above photographs show an installation for global logistics company Expeditors at their Jandakot warehouse in Western Australia.

Running on a series of engineered steel inverted T -bases and industrial grade bottom castor wheels these mobile door units are flexible, trackless, lockable and collapsible. An economical loss prevention tool and crowd control barrier to prevent unwanted visitors entering your premises during trading hours and the dual purpose of also allowing flow of fresh air and ventilation through the hot summer months.

ATDC’s extensive expandable security gate range is in many cases is OH+S tested for safe operation for both employees and customers alike.It is independently NATA tested for compliance with a number of applicable Australian Standards (such as Dynamic Impact and Simulated Climbing) and is also compliant in certain circumstances with certain of the emergency egress provisions of the BCA.

Whilst a 12-month warranty against defective materials and workmanship applies, it is recommended that since these doors are completely mobile and relocatable and therefore are not attached permanently to the building structure that the customer considers an ongoing preventative maintenance contract.

Stocked in standard heights of 2m and 2.5m although these can be custom made to lower heights and available in standard powdercoat finishes of satin black or pearl while although again custom powdercoat finishes are achievable.

Available for purchase Australia wide or for immediate short term or medium-term hire or rental across Australia. https://www.trellisdoors.com.au/product/commercial-security/retractable-barriers-and-expandable-barriers/fence-hire-s04-1

For further information contact ATDC toll free from anywhere in Australia on 1800657435 or by email on trellis@trellisdoors.com

NSW Master Security License: 410452552
QBCC QLD License number :15029633

Roller Shutters Secure Multi-level Indoor Sports Facility at Melbourne’s North Fitzroy

GENERAL

ATDC has installed its Roller Shutters at Bundha Sports Centre,Australia’s first multi-level community indoor sports facility which is adjacent to the Wurun Senior Campus at North Fitzroy near Melbourne.

The facility was purpose built for Development Victoria.Project managers and builders were Built Environs (head officed in Adelaide) whilst the architects for the project were Co-Op Studio.

ROLLER SHUTTER DESIGN SPECIFICATIONS

Ten (10) electric operated series 2  roller shutters https://www.trellisdoors.com.au/product/commercial-security/roller-shutters/roller-doors-series-2-security-shutters  were installed by ATDC to secure different areas of the facility

The curtains on these roller shutters consist  of a combination of solid extruded aluminium slat  infills as well as slotted sections with a perforated mesh infill to permit airflow.Key switches were installed to limit access control and increase security to the premises.

The maximum possible span for these roller shutters is 5500mm in one section if motorized.The roller drum is manufactured from a heavy duty 229mm steel tube which is either seam lock or spiral welded.For electric operation 240V electric actuators are utilized.

On this particular project a number of special access control features were provided for these roller shutters including digital card swipe facilities with protective Photo Electric beams.The shutters were also wired to the customer’s emergency fire protection system.

WARRANTY

A 12-month warranty against defective materials and workmanship applies.

PROJECT WORK

Project specific photographs are attached above for viewing.

CONTACT US

See our full range of roller grilles and roller shutters or contact us toll free from anywhere in Australia on 1800 657 435 or email trellis@trellisdoors.com

NSW Master Security License: 410452552
QBCC QLD License number :15029633

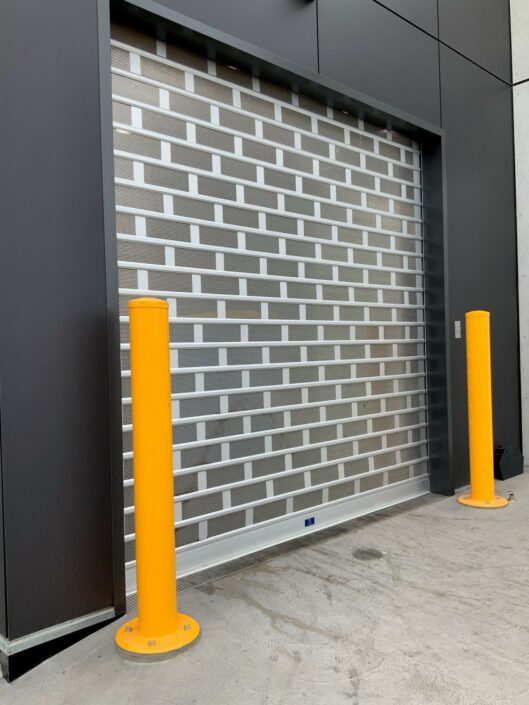

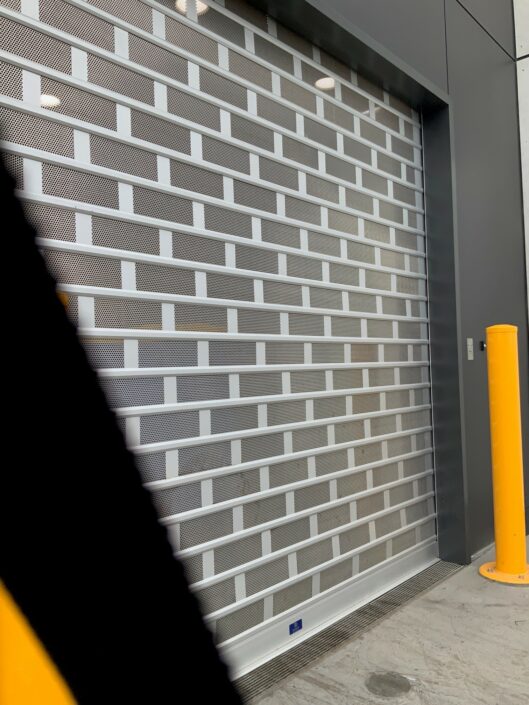

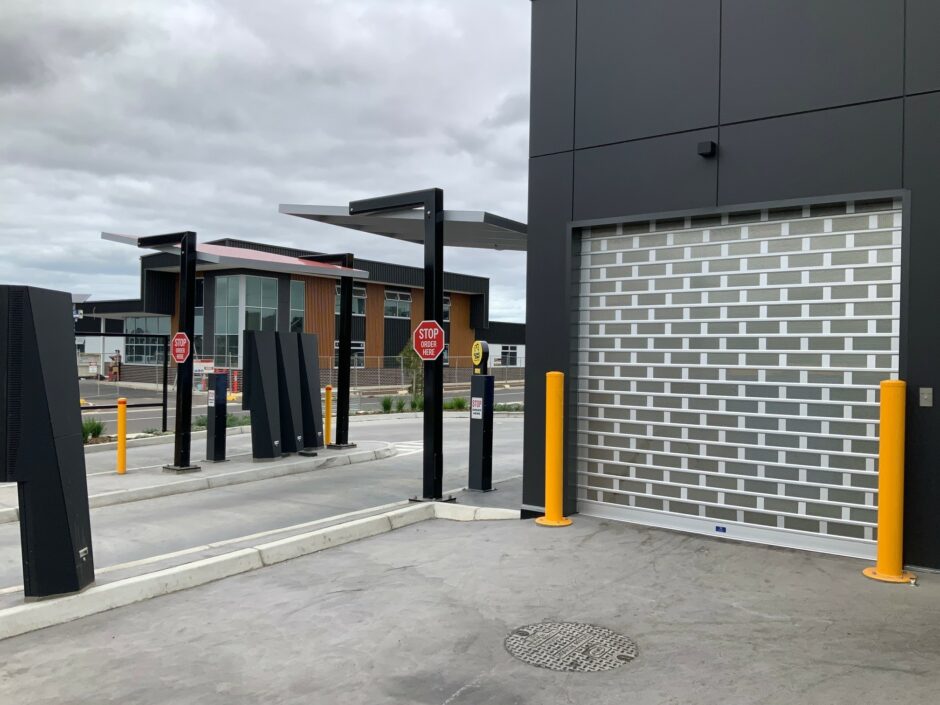

Secure Roller Shutters for International Brand Names

General



ATDC has completed a successful installation of its secure roller shutters   https://www.trellisdoors.com.au/product/commercial-security/roller-shutters/security-roller-shutters-rs3 as a security measure for the tenancy for Trek Bikes at their store near Melbourne.

Shutter Product Design Specifications

The double walled aluminium extruded roller shutters on this project are electric operated with an external key switch for added security.

The challenge presented by the Prescence of an emergency egress were overcome on this installation.

The finish on this project was a Dulux Monument powdercoat finish.

Other Applications for these Shutters

The roller shutters provide security at night when your business is closed and during trading hours, they roll up into a compact and slimline pelmet box so as to be totally inconspicuous.

This product with its extruded aluminium exterior curtain infill is ideal for securing windows and doorways for shopfronts, arcades, malls, shopping centres, sports stadiums, commercial, industrial and office applications, schools, universities, factory showrooms, medical centres, hospitals, aged care centres, hotels, banks and more

Warranty

We offer a 12-month warranty on all parts including motors and aluminium slats that are used in the construction of these shutters.

Project Work

Project specific photographs are attached above for viewing.

Contact Us

For further information on our full range of commercial security roller shutters contact us toll  free on 1800657435 or email ATDC at trellis@trellisdoors.com .

NSW Master Security License: 410452552
QBCC QLD License number :15029633

Folding Closures and Doors secure premises for fast growing national household brand

General

ATDC has completed an installation of its industry  leading folding closures and  doors ( https://www.trellisdoors.com.au/product/commercial-security/folding-doors-and-shop-doors/fc1-folding-closures ) at the Elite Supplements tenancy at Stanhope Village Shopping Centre in Stanhope Gardens near Sydney.

PRODUCT DESIGN SPECIFICATIONS.

This duralloy black powder coated 6000mm wide x 3500mm high door was manufactured from locally sourced extruded aluminium sections. The curtain infill consisted of 300mm wide stacking panels with an elegant, perforated mesh which maximizes airflow and ventilation and see through visibility

A number of up/down locking mechanism allows for a seamless product requiring no floor track, no removeable mullions and no required headroom

This product can be made to a maximum height of 4500mm, and the potential span is unlimited. Standard finishes are natural anodized for all aluminium surfaces alternatively a Dulux Duralloy powdercoat .

Project managers for this installation were Regiment Workshop based in Bankstown near Sydney. The specifying architect was ACT Canberra based Sugar Designs.

FOLDING DOOR WARRANTY

A 12-month warranty against defective materials and workmanship applies

PROJECT WORK

Project specific photographs are attached above for viewing.

CONTACT US

For further information on ATDC’s comprehensive range of commercial doors see our commercial security doors. You can contact us toll free from anywhere in Australia on 1800 657 435 or email us at trellis@trellisdoors.com

NSW Master Security License: 410452552
QBCC QLD License number :15029633

Architecturally styled curved folding doors for commercial application

ATDC has installed its stylish, architecturally designed curved folding doors https://www.trellisdoors.com.au/product/commercial-security/security-screens-and-screen-doors/stacking-doors-s08   to secure the curved reception counter to The North Melbourne Primary School in Victoria.

Project Design Specifications

Challenges that were overcome  on this architect specified project included both traversing a custom designed radius curve as well as  a stepped counter height . Security was achieved through a series of up/down locks which provide lock up without the need for any floor track to the counter top . A continuous overhead support beam was required to attach the aluminium  extruded head track and to suspend the door weight of approximately 12 kg per square metre.

Maximum heights for our curved doors are 4500mm and the maximum span is unlimited.

These unique folding doors provide ventilation and air flow through the mesh infill and maximum through vision.They fold out of the way and out of sight when not in use so as to be almost invisible.

Specifying Architect

The Specifying architect for the project was Brand Architects located in East Melbourne and the. Project managers and builders were Sunbury based Ayjay Construction.

Colour range

The doors installed on this project were supplied in a standard black satin Powdercoated finish.Pearl white is also a standard powdercoat finish whilst special colours within the Dulux Duralloy range are available at an additional cost and lead time.

Warranty

12-month warranty against defective materials and workmanship applies

Project Work

Project specific photographs can be viewed below of this unique door system. Note these images show the openings on the project still under construction.

Contact Us

For further information on their full range of folding doors please visit ATDC’S website at https://www.trellisdoors.com.au/products/commercial-security or  contact ATDC toll free from anywhere in Australia on 1800 657 435 or email trellis@trellisdoors.com

NSW Master Security License: 410452552
QBCC QLD License number :15029633

Expandable barriers installed for national bowling alley

ATDC has installed its heavy-duty expandable barriers   https://www.trellisdoors.com.au/product/commercial-security/security-screens-and-screen-doors/s06-concertina-security-shutters   to secure the entries to the new Strike Bowling outlet at City Century Walk at Glen Waverly near Melbourne.

Strike Bowling is one of Australia’s largest national tenpin bowling alley chains.

PROJECT DESIGN SPECIFICATIONS

The 4 off steel expandable barriers that were installed at this location have achieved lock up through a series of intermediate up/down locks which provide seamless security. Virtually no overhead room is required above to support these barriers-continuous structural support beams directly above the extruded aluminium head track are all that is required above and no floor track is required which would otherwise impede pedestrian traffic flow.

These systems   provide more than 80% maximum airflow allowing ventilation to these commercial premises.

Maximum height is 4600mm whilst the width is unlimited.

PROJECT MANAGERS

Collingwood based Lexon Group were project managers for this installation.

COLOUR RANGE

The doors installed on this project were supplied in a standard satin black Powder coated finish. Pearl white is the other standard Powdercoat finish however other Powdercoat options are available within the Dulux Duralloy Powdercoat range.

WARRANTY

12-month warranty against defective materials and workmanship applies

PROJECT WORK

See image above showing how they fold completely out of the way and out of sight when not in use so as to provide a completely clear retail trading space.

CONTACT US

For further information on our expandable barrier   range visit our website at https://www.trellisdoors.com.au/products/commercial-security  – please contact ATDC toll free from anywhere in Australia on 1800 657 435 or email trellis@trellisdoors.com
